8-32 x 1 Alloy Steel Button Head Socket Cap Screw gives equipment builders a rounded button-head form for visible or frequently handled fastening points. The alloy steel construction fits fixture construction where a broader bearing surface and socket-drive access are part of the design.
This configuration is practical for production machinery and maintenance repair where socket engagement is practical where side clearance is limited. It also works in production machinery and maintenance repair when socket engagement is practical where side clearance is limited. Selection is usually driven by head shape, socket access, and exposed-surface requirements rather than by the geometry of a standard socket head cap screw.

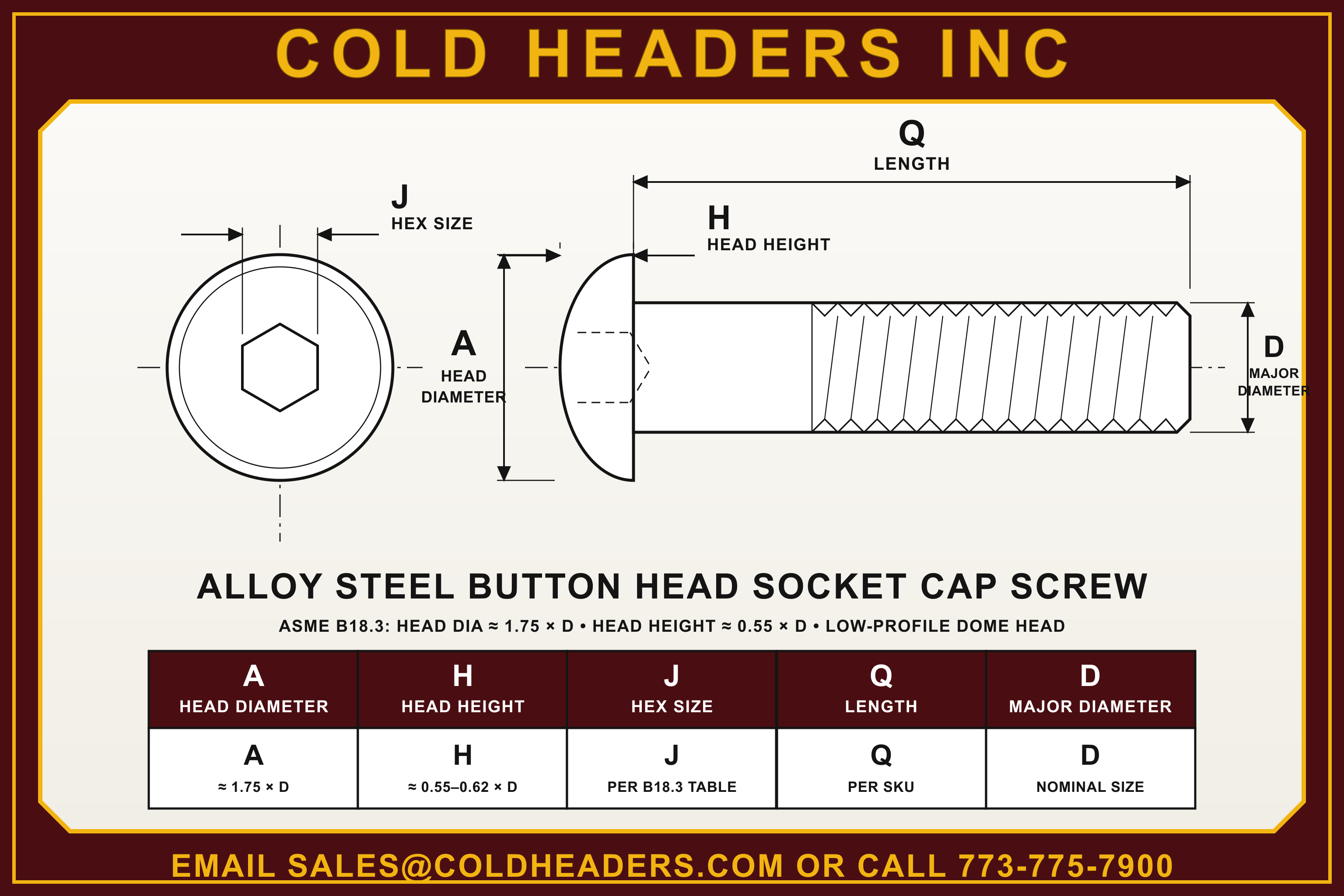

When matching the 8-32 thread and 1 in. length, the reference head diameter is 0.298-0.312 in. and the head height is 0.077-0.087 in. The nominal body diameter and hex-key information below help confirm fit, tool clearance, and replacement requirements.
Reference dimensions may vary slightly by manufacturer.
Call 773-775-7900 or email Sales@coldheaders.com for pricing, availability, or a quote.
